DFY type anti blocking air pressure sampling
The sixty-four-dollar question for the measuring gas pressure or differential pressure is that the sampler blocks up and the instruments cannot use，this is a liability to the safety .For the sampler works normally，we must use the compressibly air to blow the tubes，but this is a dirty and tired work。In order to resolve the difficult problem，my company develops the DFY-01 type Prevent-block device for Wind-Pressure Measuring.This device has used at many power plants for years，it has tested and verified by all customers
Product Description
The sixty-four-dollar question for the measuring gas pressure or differential pressure is that the sampler blocks up and the instruments cannot use，this is a liability to the safety .For the sampler works normally，we must use the compressibly air to blow the tubes，but this is a dirty and tired work。In order to resolve the difficult problem，my company develops the DFY-01 type Prevent-block device for Wind-Pressure Measuring.This device has used at many power plants for years，it has tested and verified by all customers，and all user like this device very much because this device has decrease their workload by a long way，Use it in the flour milling and transmission system and the furnace's air-measuring devices may not always receive once and for all the blocking effect .This device also could be applied to cement, flour, powder metal and other solid particles containing gas or air pressure differential pressure measurement.
When you order your company's high-viscosity, low liquidity, strong wind corrosive mixture of flour and measurement took place to plug a big headache for the time，welcome to contact my company，we can plant for the design and manufacture of satisfaction with the prevent-block wind pressure sampler。
1、Characteristic：
（1）Simple structure，very cheap；
（2）Don’t need the air，there is no complicated system and install simply；
（3）No wastage and no maintenance；
（4）N0 any the Add-ons measurement error。
2、Installation requirements:

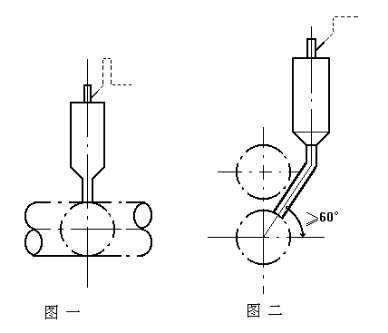

(1)The sampler must install perpendicularly；（Chart 1）
(2)When the sampler can not install perpendicularly on the pipelines，can draw deep with the seamless steel tubes（φ34），but the angle of theφ34 tubes between the horizontal plane should be greater than or wait until at 60 °，the sampler is still necessary to install vertical（Chart 2）。
(3)When conditional， direct coal tracheal tube(300mm) leads to the original long after the seamless steel tubes(φ34×2) used to be cited instrument。
(4)Use media pressure：≤ 0.2MPa
3、The main parameters:
(1)Weight：2.1Kg
(2)Material：Stainless Steel
(3)Cited pressure pipe caliber：φ34×2
(4)Sampling tube caliber：φ14×2
(5)Wall thickness：2.5mm
4、Warranty: 24 months
DFY type anti blocking air pressure sampling
The sixty-four-dollar question for the measuring gas pressure or differential pressure is that the sampler blocks up and the instruments cannot use，this is a liability to the safety .For the sampler works normally，we must use the compressibly air to blow the tubes，but this is a dirty and tired work。In order to resolve the difficult problem，my company develops the DFY-01 type Prevent-block device for Wind-Pressure Measuring.This device has used at many power plants for years，it has tested and verified by all customers
Product Description
The sixty-four-dollar question for the measuring gas pressure or differential pressure is that the sampler blocks up and the instruments cannot use，this is a liability to the safety .For the sampler works normally，we must use the compressibly air to blow the tubes，but this is a dirty and tired work。In order to resolve the difficult problem，my company develops the DFY-01 type Prevent-block device for Wind-Pressure Measuring.This device has used at many power plants for years，it has tested and verified by all customers，and all user like this device very much because this device has decrease their workload by a long way，Use it in the flour milling and transmission system and the furnace's air-measuring devices may not always receive once and for all the blocking effect .This device also could be applied to cement, flour, powder metal and other solid particles containing gas or air pressure differential pressure measurement.
When you order your company's high-viscosity, low liquidity, strong wind corrosive mixture of flour and measurement took place to plug a big headache for the time，welcome to contact my company，we can plant for the design and manufacture of satisfaction with the prevent-block wind pressure sampler。
1、Characteristic：
（1）Simple structure，very cheap；
（2）Don’t need the air，there is no complicated system and install simply；
（3）No wastage and no maintenance；
（4）N0 any the Add-ons measurement error。
2、Installation requirements:
(1)The sampler must install perpendicularly；（Chart 1）
(2)When the sampler can not install perpendicularly on the pipelines，can draw deep with the seamless steel tubes（φ34），but the angle of theφ34 tubes between the horizontal plane should be greater than or wait until at 60 °，the sampler is still necessary to install vertical（Chart 2）。
(3)When conditional， direct coal tracheal tube(300mm) leads to the original long after the seamless steel tubes(φ34×2) used to be cited instrument。
(4)Use media pressure：≤ 0.2MPa
3、The main parameters:
(1)Weight：2.1Kg
(2)Material：Stainless Steel
(3)Cited pressure pipe caliber：φ34×2
(4)Sampling tube caliber：φ14×2
(5)Wall thickness：2.5mm
4、Warranty: 24 months
